Sketch AR History

Updated by Heather Jones

The rooms you capture in Sketch AR remain available for that project via Sketch AR History. This means that if your session is somehow cut short and the captures are not transferred to the sketch, you can still access their data and add them.

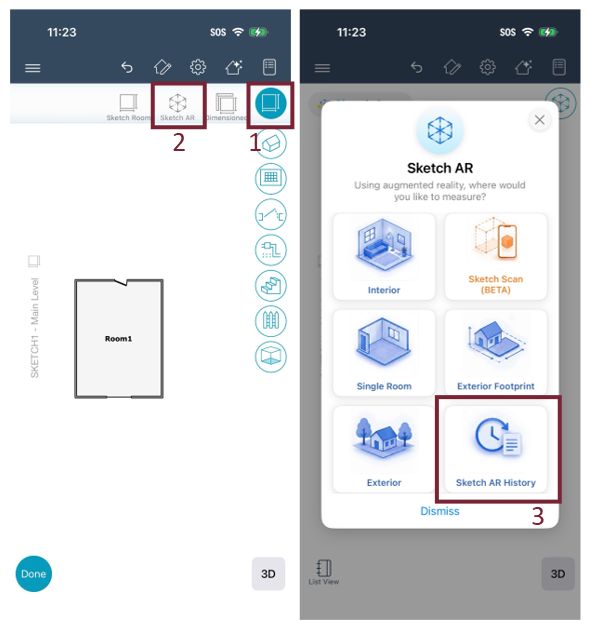

Open Sketch AR History

To access Sketch AR History, complete the following:

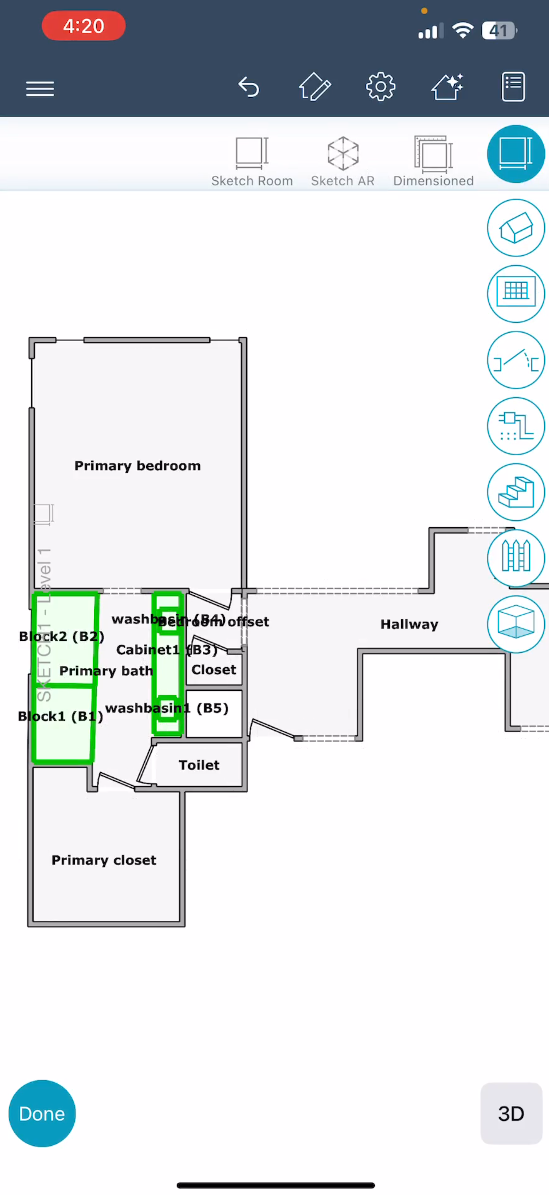

  1. Open the flyout menu (the round icon in the upper right of the sketch screen).
  2. Select the Sketch AR option.

  1. In the Sketch AR Mode screen that appears, select Sketch AR History. The Sketch AR History screen appears.

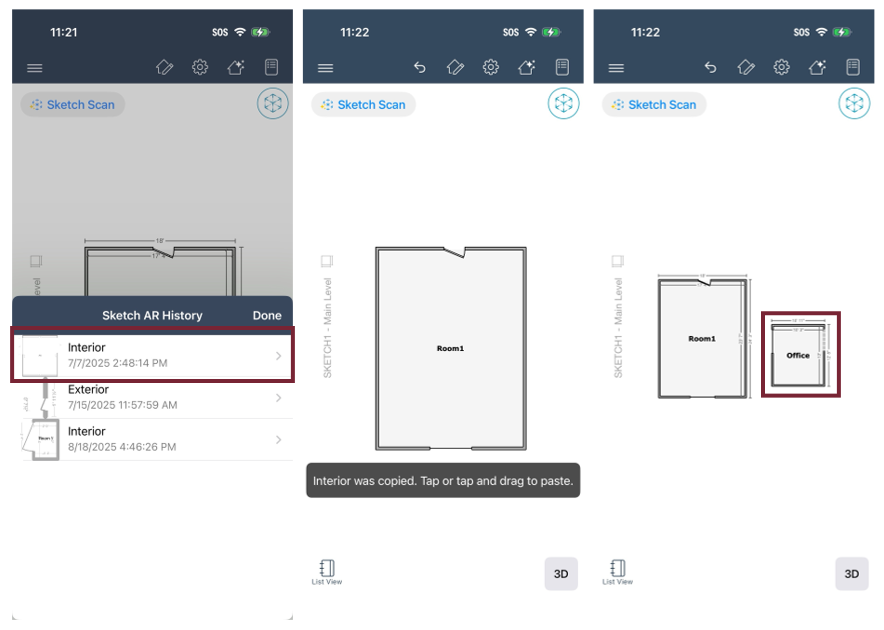

Place capture from history

With the Sketch AR History visible, tap to select the capture you need. The menu closes once you select one of the options, and you can then tap the white space in the sketch to place the capture.

Note: You can preview a capture by sliding it to the left and selecting the magnifying glass. When done with the preview, select Back to return to the menu.
